High technology in tune with the market

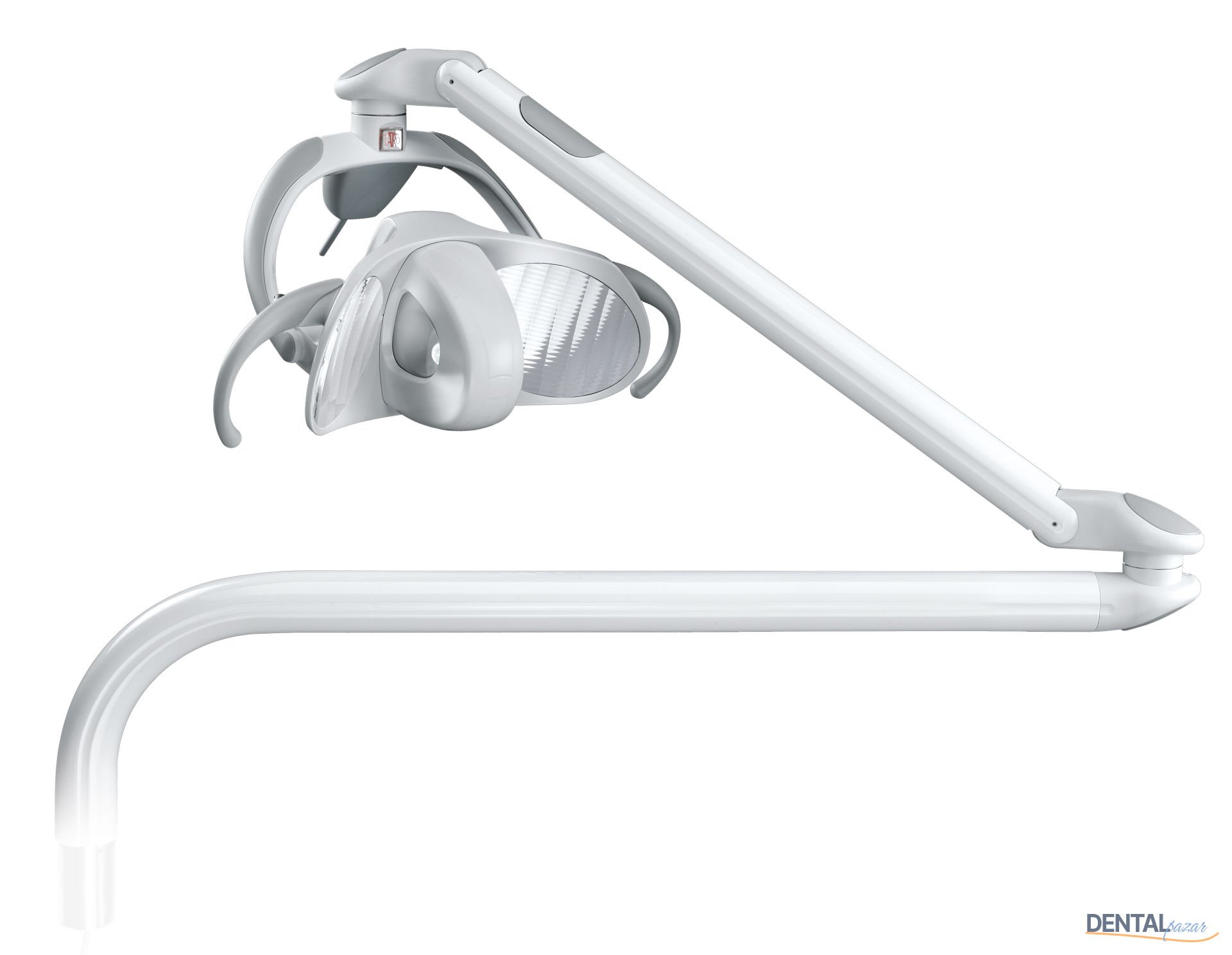

The ideal solution for anyone looking for a LED dental operating light with high performances at an affordable price. Faro patented optical system, removable and sterilizable handles and, from now on, a new electronic board which ensures the perfect compatibility with the video acquisition systems and diagnostic tools, that nowadays are even more common in the dental practices. |
|
Patented optical project with reflected light
Thanks to its exclusive optical project with reflected light, and through the 258 small reflecting facets included in each of the two parables, Maia dental light avoids the direct vision of the 2 LEDs, creating a 170 x 85 mm spotlight area absolutely uniform. The accurate definition of the spotlight removes the glare, protecting your patients’ eyes. |
|
Progressive adjustment and memorization of illuminance NEW!
The new electronic control of the illuminance, activated by joystick or sensor, adjusts the light from maximum to minimum power without any interruption, keeping the colour temperature constant. Automatic memorization of used light intensity, also after switching off the unit’s power or after the ‘rinse’ function. |
|
The scialytic effect
Minimum dimension of the sharp shadow required by standards: Ø 12mm.
Maia scialytic effect generates an ellipse of only 9x6 mm. |
| 2-D ROTATION OR 3-D as an option Perfect balancing, combined with the exclusive head rotation system on two axis. Moreover, choosing the third axis rotation option, it’s possible to achieve a better positioning of the luminous flux. |
|
Electronic controls
|
Optional
|
|
GENERAL FEATURES* |
|
| Power Supply with transformer | 230 Vac +/- 10% - 50/60 Hz |
Power Supply with power pack
Power Supply without power pack |
90-264 Vac - 47-63Hz
17-24 Vac - 50-60 Hz 22-35 Vdc |
Absorbed Power
|
max 9 VA
|
Lux
|
from 3.000 to 35.000 (at 700 mm of distance) |
Lighting Spot
|
170 x 85 mm (at 700 mm of distance)
|
Cooling system
|
static heat sink (no fan required)
|
Handles
|
removable and autoclavable
|
| Medical Device complies with Directive 93/42/EEC and s.m.i. - Medical devices - class I - Applied Standards: EN 60601-1, EN 60601-1-2, EN 60825 , EN 62471; 12 months guarantee. *(The above specifications are typical values subject to tolerance) |
|
Thanks to a wide range of accessories MAIA is available for WALL, CEILING and FLOOR applications. |
|
