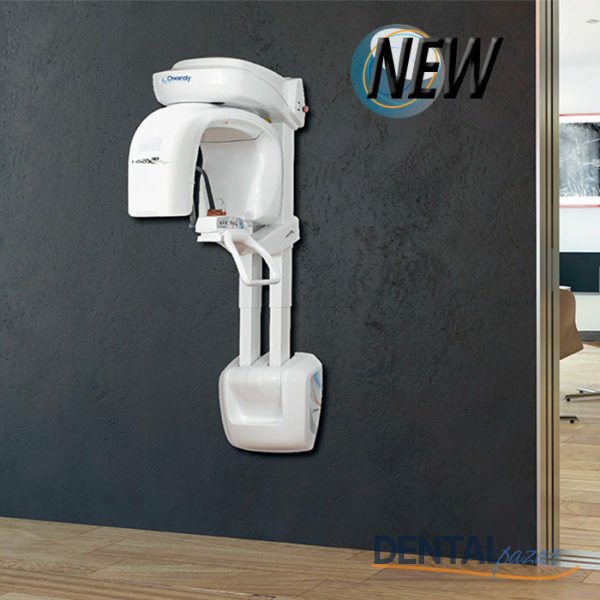

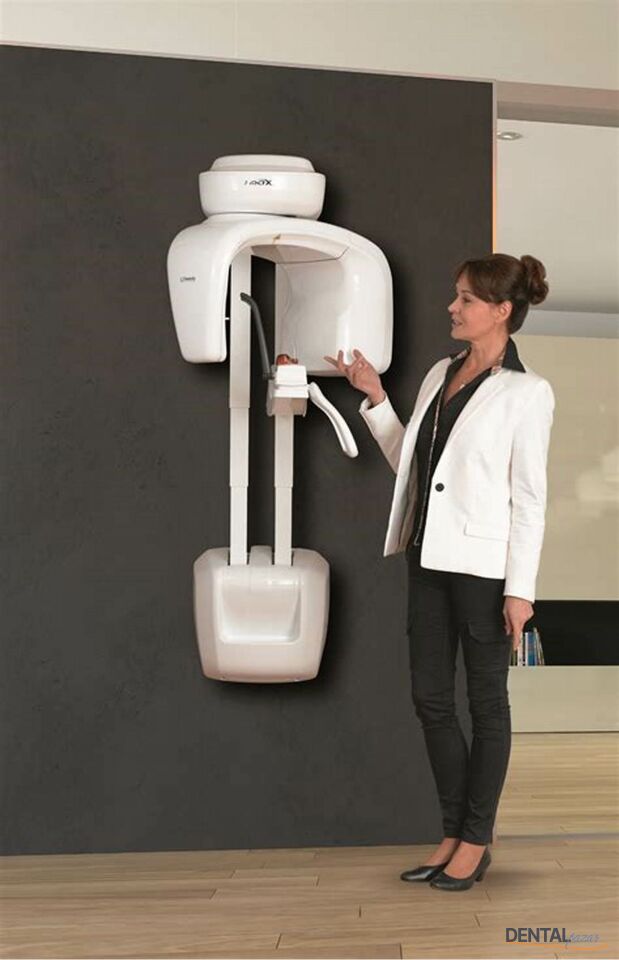

I-Max 2D-3D Panaromik Tomografi Röntgen
Kategori
Marka
Stok Kodu
9CZ55UDLX3
Fiyat
0,00 TL + KDV
- Class:
- Class II B / CE0051
- Power supply:
- 110-120 V, 220-240 V at 50/60Hz
- Rated output voltage:
- 60 ÷ 80 kV, with 2 kV steps
- Anode current:
- 2 ÷ 12.5 mA, according to r20 scale
- SID (Source to Image Distance):
- 520mm
- Total weight (wall-mounted version):
- 66kg
- Inherent filtration:
- > 0.5 mm
- HF generator:
- Constant potential (DC)
- X-ray focus:
- 0.5mm EN 60336
- Connection :
- LAN, Ethernet (with dedicated computer)
- Digital sensor:
- CMOS 144 x 118 mm
- Voxel resolution:
- 87 µm
- Mutli F.O.V
- From 9x9 to 5x5 cm
- Exposure time :
- From 3.20 to 14.4 (2D exams) / From 10.8 to 11.2 (3D exams)
- Enlargement:
- From 1.25 to 1.28
- Option
- Column-mounted version
